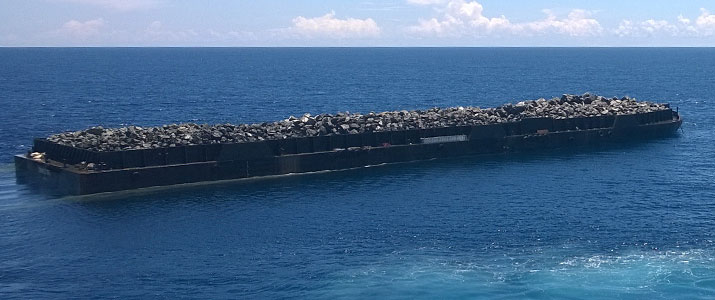

Comarco 3652

Heavy Cargo Barge / Deadweight 12000 T

Deadweight

12,000 T

Length overall

111.252 m

Beam

28.042 m

Depth

6.934 m

Loaded Draft

5.50 m

Flag

Zanzibar

Class

MBA

Year Built

2006

Deck Strength

10 t/m²

GRT

3652 T

NRT

1602 T

Side Boards

2m high x 10mm thick

Anchoring Equipment

1 x anchor winch 10 t pull
at first layer

1 x 2850 kg stockless bower anchor
and 1 spare

1 x 370.5 m anchor wire 52 mm dia

1 x 12.5 m anchor tail chain 42 mm dia

Hull Plating Thickness

Deck plating 16 mm

Bottom plating 14 mm

Side shell plating 12 mm

Deck Fittings

9 x flush type watertight manholes
600 X 400 mm (centre voids)

18 x raised type watertight manholes
600 x 400 mm (side voids)

27 x vertical steel ladders for access
to under-deck voids

3 x navigation light stands

15 x single post mooring/towing
cross bitts, 300 mm diameter

6 x push pads, 3 each port and starboard
