Comarco 185

Flat Top Barge / Deadweight 1801 T

General Particulars

Type

Flat Top Barge

Built

2012

Ship Builder

ASL Shipyard Pte Ltd Singapore

Flag

Cook Islands

Class

ABS

Port of Registry

Avatiu

Principal Dimensions

Length Overall

54.86 m

Beam

15.24 m

Depth

3.05 m

Light Draft

0.500 m

Loaded Draft

2.330 m

GRT

629.00 T

NRT

188.00 T

Capacities

Deadweight

1801 T

Deck Area

836 m²

Maximum Deck Load

15.00 T/m²

Side Walls

Yes

Steel Scantlings

Deck

12 mm

Bottom

9.5 mm

Side Shell

9.5 mm

Bulkhead

8 mm

Comarco 185 Downloads

Comarco 185 Specifications

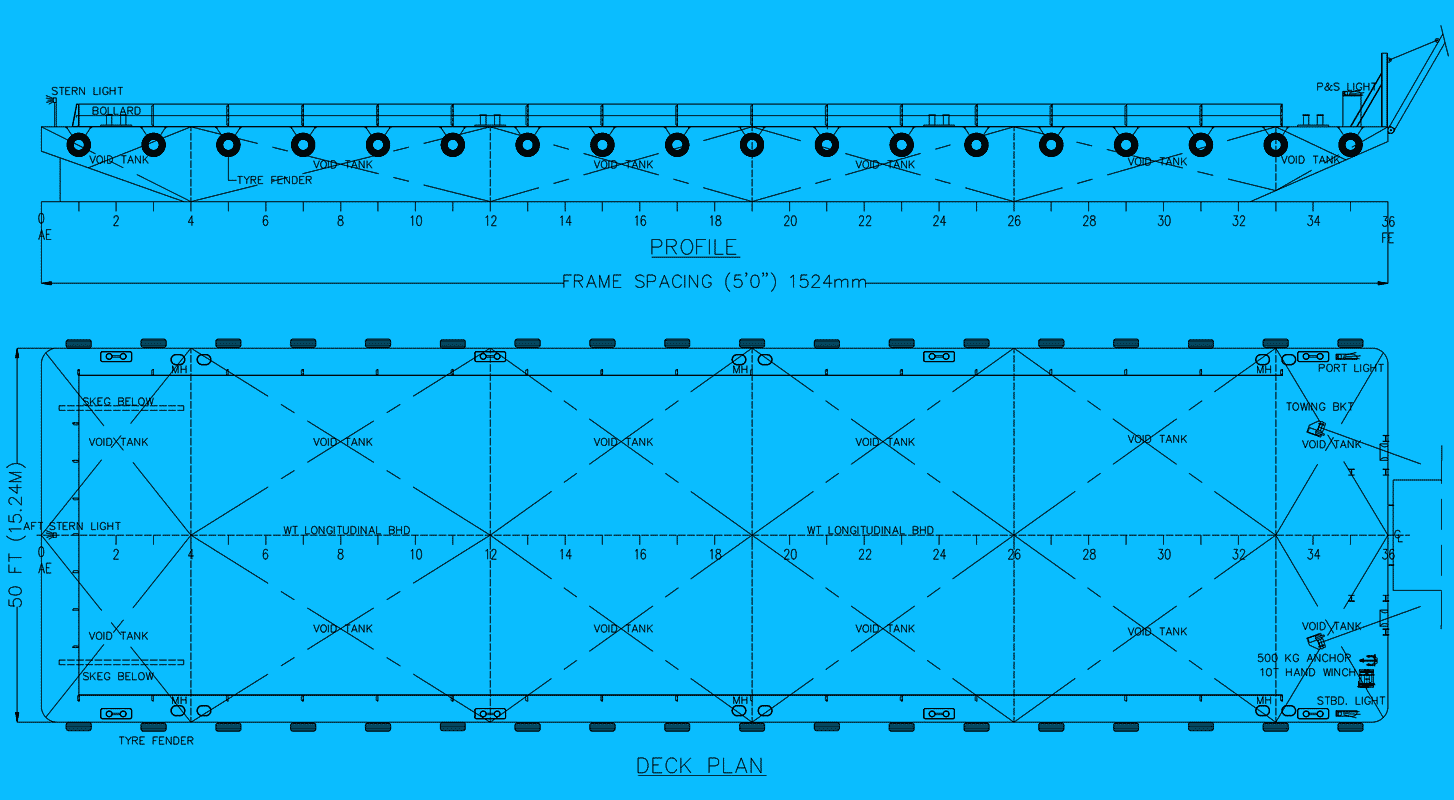

Comarco 185 GA Plans
