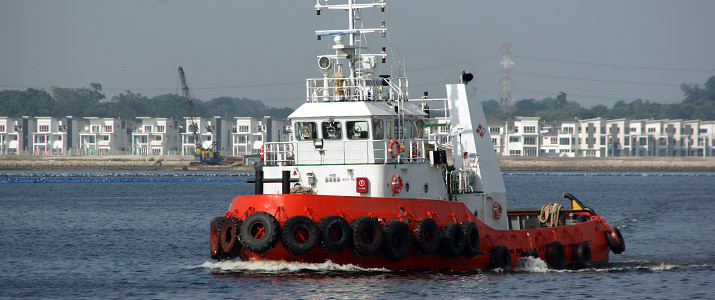

Comarco Merlin

Tug / 2400 BHP

General Particulars

Type

Tug

Built

1999

Ship Builder

Shangnan Shipyard, China

Flag

Tanzania

Class

MBA

Port of Registry

Zanzibar

IMO number

9210830

Official Number

TG-01454L

Principal Dimensions

Length Overall

27.01 m

Breadth

8.96 m

Depth

4.24 m

Designed Draft

3.50 m

GRT

250.00 T

NRT

75.00 T

Performance

Power

2400 BHP

Cruising Speed

tba

Maximum Speed

12.00 knots

Range

tba

Endurance

26 days

Bollard Pull

30 T

Comarco Merlin Downloads

Comarco Merlin Specifications

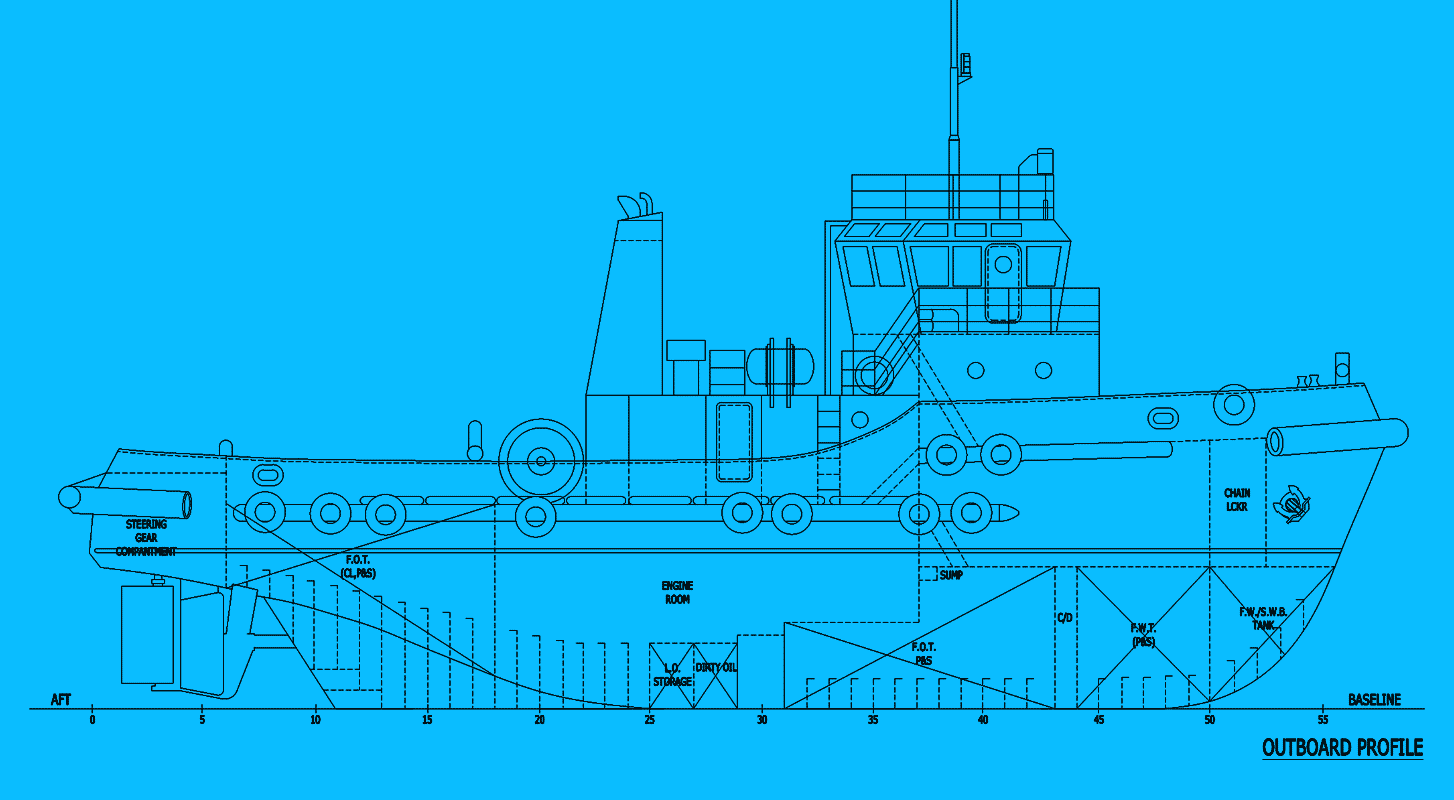

Comarco Merlin GA Plans

Communication Equipment

SSB

FURUNO 1562-25

GMDSS

tba

VHF

2x FURUNO FM-2510

Sat Phone/Email

tba

Public Address System

1 x 50W VINGTOR
VRC 110M system

Navigation Equipment

Auto Pilot

FURUNO FAP 330

Radar

FURUNO FR-1525 MK3

Echo Sounder

FUSO Colour Video FEC-1020

Gyro

TOKIMEC ES110

Magnetic Compass

tba

GPS

Yes

AIS

tba

Accommodation

Total Berths

12

Air Conditioning

Yes

Capacities

Deadweight

151.00 T

Deck Area

31.95 m²

Maximum Deck Load

n/a

Deck Load per m²

n/a

Fuel Capacity

170.00 m³

Fresh Water Capacity

16.00 m³

Ballast

tba

Machinery & Equipment

Main Engines

2 x YANMAR M220-EN medium speed
six cylinder diesel engines producing
1200 bhp each at 800 rpm

Propellers

2300mm diameter fixed pitch propellers
turning in Kort nozzles at 224 rpm

Generators

2 x 99 KW 415/3/50 driven by 2 x Cummins
6CT8-3G diesel engines

Gearbox

2 x YANMAR YC-1100 3.28:1
reverse reduction gearboxes

Steering Gear

Electro hydraulic, 3T torque

Fuel Oil Purifier

Mitsubishi F.O. purifier SJ-700
of 1250 litres per hour capacity

Towing Winch

ZICOM single drum hydraulic towing winch.
70T brake capacity. 10T line pull at 12m/min
Drum size 650m x 44mm SWR

Wire Storage Reels

1 x electric wire storage reels of 650m x
44mm SWR capacity. Storage reel will contain
650m x 44mm of spare towing wire

Anchor Windlass

Electro-hydraulic, 4T at 14m/min

Anchors

2 x 480kg stockless anchors

Anchor Cable

2 x 220m x 24mm diameter U2 stud link chain

Cutting Equipment

2 bottles oxygen and 1 bottle acetylene
c/w cutting torch

Life Saving Equipment

Life Boat

tba

Life Rafts

2 x 15 men

Life Buoys

tba

Life Jackets

tba

EPIRB

tba

SART

tba

MOB

tba
