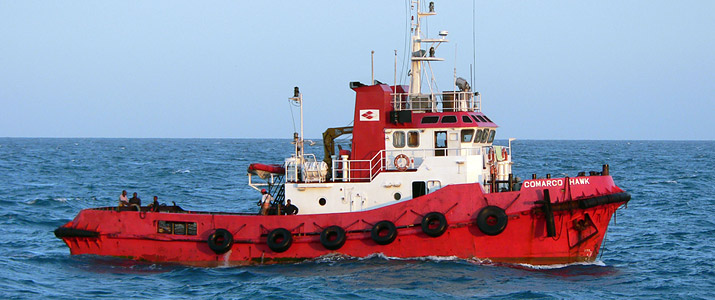

Comarco Hawk

Tug / 1240 bhp

General Particulars

Type

Tug

Built

1999

Ship Builder

Guangzhou Ship Yard, China

Flag

Seychelles

Class

Bureau Veritas

Port of Registry

Port Victoria

IMO number

8954362

Official Number

50144

Principal Dimensions

Length Overall

24.85 m

Beam

7.60 m

Depth

3.70 m

Designed Draft

2.80 m

GRT

172.00 tT

NRT

51.00 tT

Performance

Power

1240 bhp

Cruising Speed

7.00 knots

Maximum Speed

10.00 knots

Range

3,500 nm

Endurance

15 days

Bollard Pull

15.00 tf

Comarco Hawk Downloads

Comarco Hawk Specifications

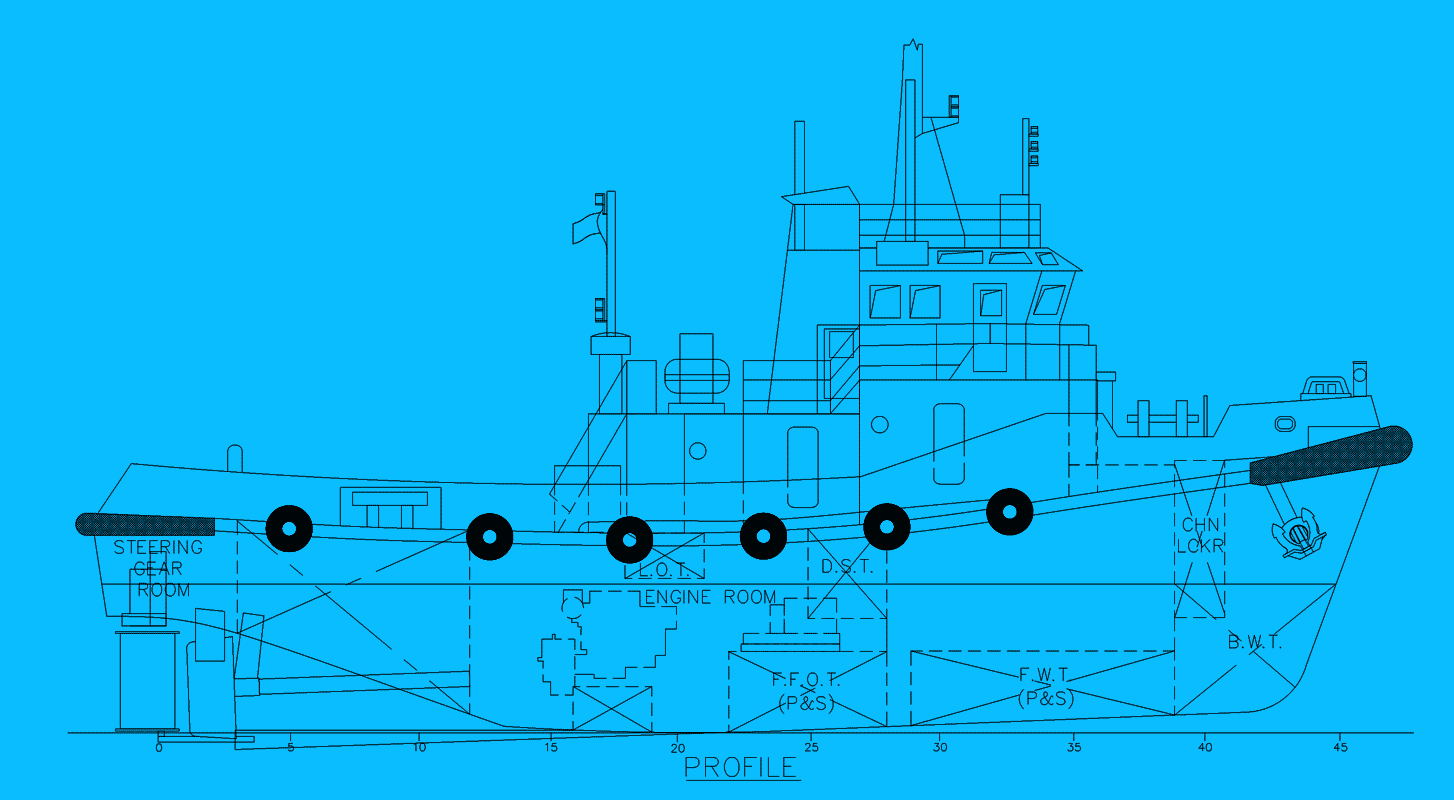

Comarco Hawk GA Plans

Communication Equipment

SSB

Sumyung SRG 3150 DN

GMDSS

VHF

Icon Marine VHF

Sat Phone/Email

AMOS CONNECTION

Navigation Equipment

Auto Pilot

Comnav Marine

Radar

Furuno

Echo Sounder

Furuno FF30

Magnetic Compass

CPT-130

GPS

Furuno GP-30

AIS

tba

Accommodation

Total Berths

Crew Berths

Mess Rooms

Air Conditioning

Yes

Capacities

Deadweight

109.50 t

Deck Area

37.00 m²

Maximum Deck Load

n/a

Deck Load per m²

n/a

Fuel Capacity

103.88 m³

Fresh Water Capacity

27.00 m³

Ballast

12 m³

Machinery & Equipment

Main Engines

2x Cummins KTA 19M3

Propellers

Rudders

Generators

2 x Diesel = 56 KVA,45 KW, 50 hz

Gearbox

2x REINTJES WAF363

Towing Winch

Hook

Anchor Handling / A Frame

Deck Crane

1 X 200 kg

Life Saving Equipment

Life Rafts

2x10 persons

Life Buoys

Life Jackets

EPIRB

SEP 500

SART

Kannad Marine

MOB

Huahai
