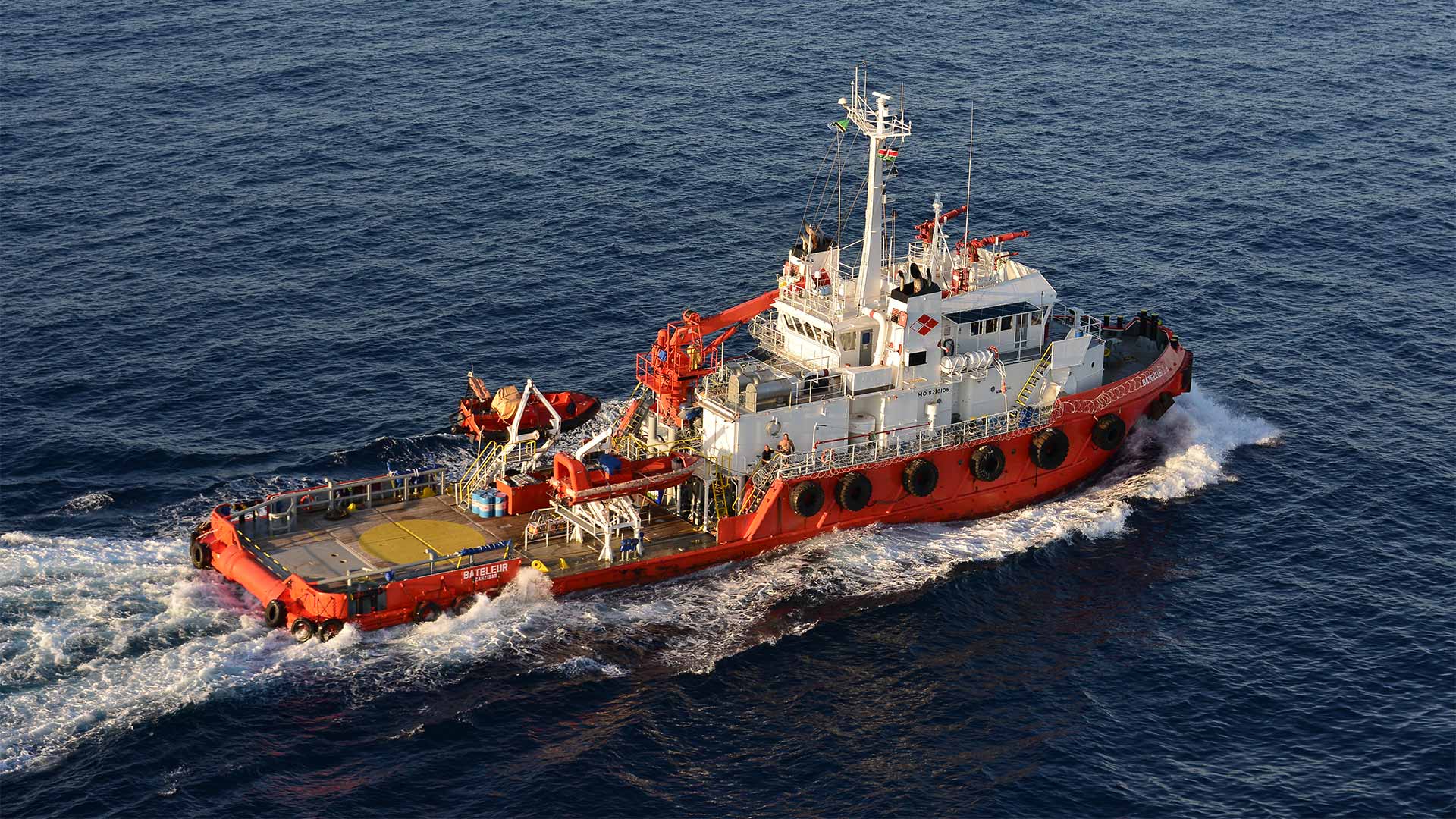

AHTS Bateleur

IMO Number

8210106

Owner

Comarco Mauritius Ltd

Flag

Cook Islands, Avatiu

Built

Inamura Shipyard Japan 1982

Classification

Sing-Lloyd S1
(AHTS - ICE CLASS C, TOWING SERVICE, Ⓔ)
SMS

GRT / NRT / DWT

780 rT / 234 rT / 772 rT

Dimensions

48.7 m x 12.2 m x 4.5 m

Designed Draft

3.8 m

Clear Deck Space

175 m2

Deck Cargo

250 tons

Speed

Maximum 12 kts / Economical 9 kts

Endurance

12,000 nm @ 9 kts

Bollard Pull

41.7 rt



AHTS Bateleur Photos & Downloads

Towing Winch

Fitted with 750 m x 52 mm IWRC 206 T MBL

Stern Roller

4.0 m x 1.5 m

Tugger Winches

2 x 5 tons x 15 m/minute

Capstans

2 x 5 tons x 12 m/minute

Anchor Windlass

2 x 4.2 tons @ 15 m/minute

Anchors

2 x 1,300 kg HHP

Anchor Cable

2 x 438 m x 32 mm dia chain

Deck Cranes

Allied Marine 5 tons @ 12 mtrs

Main Engines

2 x Yanmar Z280-ST x 1600 bhp
developing 3200 bhp @ 650 rpm

Propellers

2 x fixed pitch in Kort nozzles

Rudders

2 x trailing flap rudders

Bow Thruster

Kanome TF-30DLN 3.2 tons

Generators

3 x 120 kW Shinko alternators driven by
Yanmar 6HAL-HT diesel engines

Firefighting

2,400 m3/hr FiFi 1

Monitors 2 x 1,200 m³

Throw length 120 m

Throw Height 50 m

Full Vessel drenching system in
accordance with FiFi 1 regulation

Foam Tank 10 m³

Fuel Consumption

Maximum Speed 12 kts approx 10 m³ mgo per day

Economical Speed 9 kts approx 7 m³ mgo per day

In Port approx 400 litres per day

Fuel Capacity

430 cubic metres

Navigation / Communication

GMDSS Area 3
Fleet Broadband 500
Inmarsat C x 2 c/w SSAS
Thuraya Orion Broadband
Comprehensive Nav Equipment

Fresh Water Capacity

286 cubic metres

Ballast Water Capacity

253 cubic metres

Bulk

Nil

Discharge Pumps

Gasoil 1 x 55 m x 40 m head 3

F. Water 1 x 55 m x 40 m head

Accommodation

4 Single Berth Cabins

4 Two Berth Cabins

3 Four Berth Cabins

1 Six Berth Cabins

1 Two Berth Hospital

Comprising

12 Crew berths

18 Passenger berths

2 Hospital berths

32 Total

Public Rooms

1 x Mess Room

1 x Galley

Messing Facilities

Water Maker 6m /day 3
Reefer Room 7 m³
Cool Room 6m3

Liferafts

4 x 25 man

Rescue Boats

1 x 6 man

Davits

2 nbr single point 3,000 kg cap

Lifesaving

Comply with SOLAS requirements
